Products Description
Element cold-freezer room doors specially‑designed sealed cold‑storage doors for low‑temperature working conditions, widely applied in freezers, blast freezers, deep‑cold warehouses and cold‑chain logistics projects. The door leaf adopts high‑density PU foam core, customizable thickness from 100‑200 mm with heat transfer coefficient U‑value as low as 0.1W/(m²·K). It works across a wide temperature range of ‑35℃ ~ +20℃, effectively blocking heat exchange and keeping stable internal temperature. Surface options include color steel, stainless steel and aluminum alloy. Multiple opening styles are available: hinged door, swing door and remote‑controlled sliding door, fully customized according to actual doorway dimensions. Complete unit comes with 3‑year warranty, delivering reliable access solutions for stable operation and energy saving of cold‑chain projects.
Product Specification
|
Products |
Cold Freezer Room Door |
|
Door thickness |
100-200mm for choose |
|
U-Value |
0.1(W.K/m²) |
|
Temperature |
-35°c ~ +20°c |
|
Size |
Customized |
|
Surface Material |
Color Steel or Stainless Steel or aluminum alloy |
|
Core Materials |
PU Foam with B2 Class Fireproof |
|
Opening type |
Manuel for hinged door,Remote control for sliding door |
|
Door type |
Hinged Door, Swing Door, Sliding Door for cold room choose |
|
Warranty |
3 Years |
Factory Workshop
Cold Freezer Room Door Workshop
The door features rounded, obtuse-angled sides. The door panel is made of 304 stainless steel from Taiyuan Iron & Steel Group (TISCO), with an oil-brushed finish and a protective film. The steel plate thickness is δ0.8mm. The panel surface is smooth and free of unevenness, with no screws or leaks to prevent moisture from entering.
The door's perimeter sealing strips are made of imported EPDM elastic rubber, extruded at high temperatures, using high-quality flame-retardant materials. They are anti-aging, oil-resistant, and tear-resistant, with a unique slot design for easy maintenance and replacement.

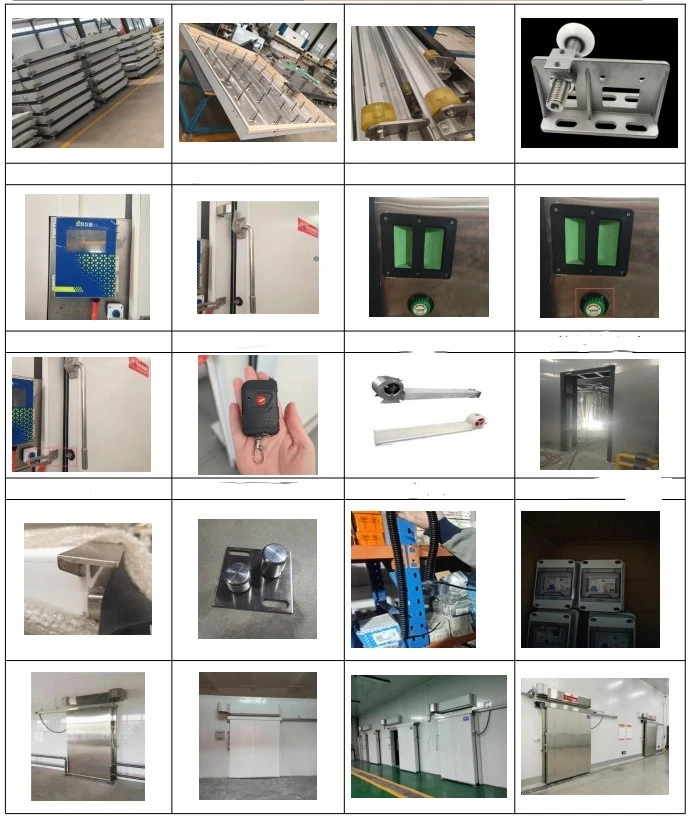

Cold Freezer Room Door Accessories
Main accessories for cold room doors: door panel, door frame, rounded‑corner profiles, slot‑type EPDM gaskets, bottom rubber seals and corner joints.
Safety components include cam‑lock safety latch, inner & outer handles, lock set and internal emergency release. Manual swing doors adopt adjustable hinges.
Sliding doors are supplied with hanging track, trolleys, stoppers and lower guide rollers. Electric sliding doors add door operator, control box, remote controller and infrared safety photocells.
Optional parts: pressure relief valve, door magnetic switch and heated gasket cable.
why choose us Cold Freezer Room Door
why choose our Cold Freezer Room Door
The door features a fully enclosed, thermally broken, and impact-resistant frame structure.
The cold storage door's sealing strips contain an electric heating element (220V, 25W/m), and feature a unique aluminum alloy snap-on groove/cover design for easy replacement and maintenance of the heating element.All hardware fittings on the door are made of stainless steel.
The guide rail is made of high-strength 6063 aluminum alloy, pressed and formed, with a silver anodized surface.
Our Certificate
FAQ
Q: What 's part cold freezer room doors including?
A: The components include: door structure, guide rails, pre-frame, transmission system, electrical control system, air curtain machine, pre-frame, opening and closing mechanism, and floor heating.
Q: What are the key features to look for in a cold freezer room door?
A: Important features include excellent insulation properties, a tight seal to prevent temperature leakage, durability to withstand frequent opening and closing, and compatibility with the specific cold storage environment.
Q: Can cold freezer room doors be customized to fit specific dimensions?
A: Yes, many manufacturers offer customizable options to ensure that the cold freezer room doors fit perfectly within the available space.
Q: What is the price of cold freezer room doors?
A: The price varies according to the size and type of door panel, generally $200-550 per set.
Q: What is the delivery time and payment method of cold freezer room doors?
A: Deliver time always 15-20 days, and advance payment TT 30% ,balance payment TT 70% before delivery.
