How To Develop A Combined Cold Room Solution For Fresh Fruit
Why Choose Combined Cold Room For Fresh Fruit ?
Fresh fruit requires proper temperature, humidity, and ventilation to maintain freshness and reduce spoilage during storage. Element Combined Cold Rooms provide a flexible and efficient storage solution for fruit distributors, farms, supermarkets, food processing plants, and cold chain businesses. unit, airtight doors, and shelving, with internal dimensions that can be adjusted to meet specific needs.
Reliable Insulation: PU sandwich panels help reduce heat transfer and maintain stable storage temperatures.
Flexible Design: Customizable dimensions and panel thicknesses to suit different fruit storage requirements.
One-Stop Solution: Element can provide cold room panels, cold storage doors, and compatible refrigeration equipment based on project requirements.
In July, Henan Element New Materials Co.,Ltd received an inquiry from an Argentine client regarding a modular cold storage facility for fresh fruit. The client needed a sectional, prefabricated cold storage unit primarily for storing oranges, apples, and grapes. The project specifications were fully customizable; the system was designed to operate on the local 380V three-phase power supply, maintain a stable internal temperature range of 0–8°C, and allow for fine-tuning of temperature and humidity settings to suit different fruit varieties.
Our technical team promptly addressed the client's requirements by producing customized design drawings, while our sales team prepared a comprehensive quotation. During the consultation process, we provided videos showcasing the actual products-including cold storage panels, refrigeration units, door locks, and accessories-allowing the client to visually verify the quality. Thanks to our rapid response and transparent product presentation, we successfully secured the partnership.
Solution for Combined Cooler

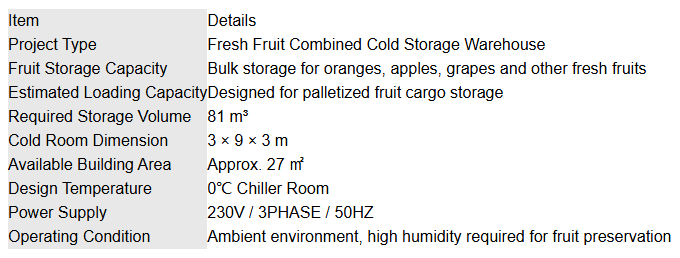

Project Requirements

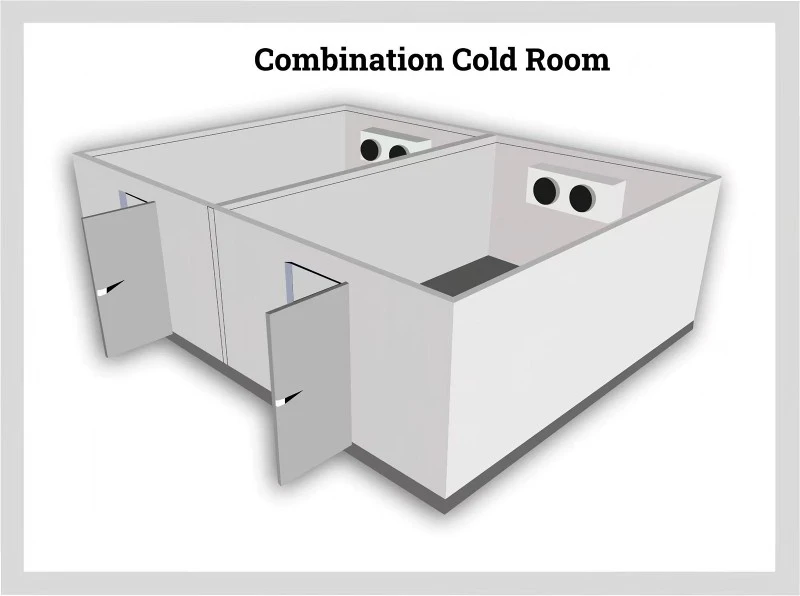

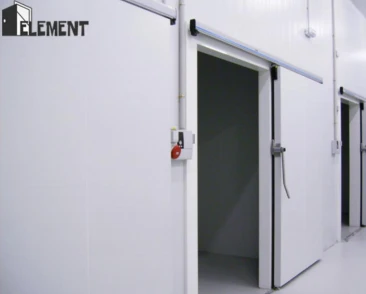

The client plans to build a partitioned combined cold room for storing fresh fruits including oranges, apples and grapes. Based on the storage demand and site condition offered by the client, the cold room dimension is 3 × 9 × 3 m, total volume 81 m³. Internal partition wall divides the warehouse into two independent cooling zones. This project supplies full set of cam-lock PU insulation panels, manual sliding cold room doors, complete refrigeration system, pipe fittings and electrical control accessories. It maintains stable 0℃ inside the cold room to slow fruit respiration and prevent rot.
Services We Offer
Choose the plan that suits you best.

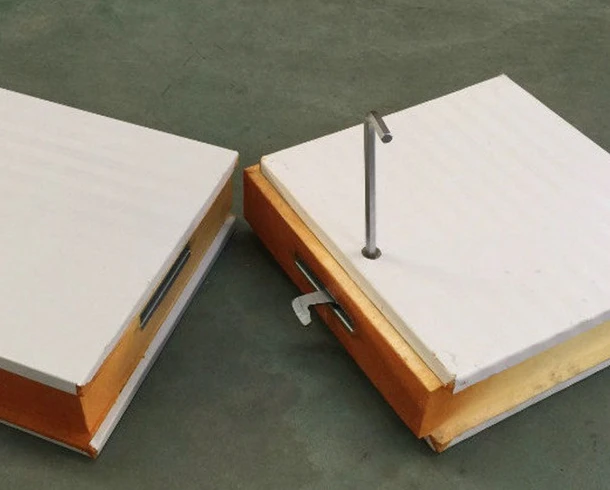

100mm Cam-lock Polyurethane Cold Storage Panels (Wall, Ceiling, and Floor Panels + Partition Panels)
Specifications: 2000 x 2100 mm. Includes door panels and complete hardware sets (2 sets in total).

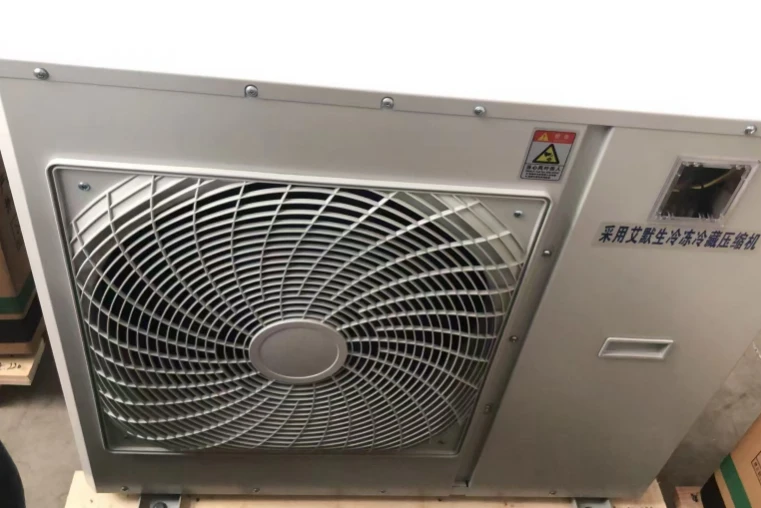

Complete Refrigeration System
Equipped with two independent refrigeration units utilizing Copeland 3HP ZB21KNE compressors, each with a cooling capacity of 5.64 kW.
Electric & Control Accessories
Equipped with two cold storage electrical control panels, integrating temperature control and automatic defrost control functions.
One-stop Combined Cooler Supplier
We offer a comprehensive range of modular cold storage components-including insulated panels, partition walls, and cold storage doors, as well as complete refrigeration systems, electrical control units, lighting, and all necessary installation accessories-providing integrated solutions for multi-zone cold storage facilities.
Please feel free to contact us with your cold storage requirements; we guarantee a response within 24 hours.
To help us tailor a solution for you, please provide details such as dimensions, target temperature, voltage, the type of goods to be stored, and whether zoning is required.
