Polyurethane Insulation Board

Polyurethane Insulation Board

Polyurethane insulation boards are rigid panels composed of polyurethane foam sandwiched between two layers of facing material, often made of metal, plywood, or plastic. These boards are widely used in construction for their excellent thermal insulation properties. Polyurethane insulation boards provide high thermal resistance, effectively preventing heat transfer and maintaining comfortable indoor temperatures. They are lightweight, durable, and easy to install, making them suitable for a variety of applications, including roofing, wall insulation, flooring, and cold storage construction. Additionally, polyurethane insulation boards offer good moisture resistance and can contribute to energy savings in buildings.
Send Inquiry
Description
Technical Parameters
Products Description

Element manufactures polyurethane insulation boards with rigid PU foam cores and protective facing materials for industrial, commercial and cold storage applications.

Our polyurethane insulation boards feature a composite structure consisting of a rigid polyurethane insulation core bonded between two facing layers. They provide effective thermal insulation while offering a practical solution for wall, roof and temperature-controlled building applications.

With customized panel thicknesses, dimensions, metal facings and surface finishes, Element supplies PU insulation boards according to different project requirements.



Contact now





Products Specification

Products Title

polyurethane insulation board

PPGI Thickness

0.4-0.7mm for choose

Panel Thickness

Chiller Room:70/100mm

Freezer Room:150mm

Blasting Room:200mm

Working Temperature

Chiller Room:about 0℃

Application:fruits and vegetables

Freezer Room:-18℃

Application:for storage meats

Blasting Room:-35℃

Application:quick-frozen food

Color

any other required on RAL Color

PU Density

42kg/m³(±2)

Effective Width

400-1120mm for wall panel,1000mm for roof panel

Length

Max 11.85m for 40HQ container or customized

Thermal conductivity(w/mk)

PU:≤0.024

Fire Rating

PU:CLASS B1

Surface Texture

Flat/Embossed Pattern/V8/Micro Ripple





Factory Workshop



Element manufactures PU composite panels using continuous polyurethane foaming and composite-forming equipment.

Our manufacturing process includes:

1. Steel Coil Preparation

Metal coils are unrolled and prepared for the panel production process.

2. Metal Sheet Roll Forming

The upper and lower metal facings are processed into the required panel profiles.

3. Protective Film Lamination

Protective film can be applied to the metal surface where required.

4. Polyurethane Foaming

Two-component polyurethane materials are mixed and injected between the facing layers. The foam expands to form the rigid insulation core.

5. Double-Belt Composite Forming

The panel passes through a controlled double-belt system to maintain the required thickness and composite structure during curing.

6. Cutting and Quality Inspection

The continuous panel is cut to the required length and inspected for dimensions, surface quality and production consistency.



Coated Steel Coiling

Coated Steel Coiling

Electrostatic Film Laminating

Electrostatic Film Laminating

Pressing Machinery

Pressing Machinery



Double Track Foam Composite

Double Track Foam Composite



Precise Machine Cutting

Precise Machine Cutting

Panel Cooling


Panel Cooling

Package

Package

To be Loaded

To be Loaded





Polyurethane Insulation Board Applications



Cold Storage Facilities

Used for insulated walls and ceilings in chilled storage rooms, freezer warehouses and food storage facilities. For cold room construction, specialized PU cold room panels with suitable connection systems can be selected.

Industrial Buildings

Suitable for insulated wall and roof applications in factories, workshops and industrial buildings.

Commercial Buildings

Can be used in building envelope systems where thermal insulation is required to improve indoor temperature control.

Food Processing Facilities

Used in temperature-controlled production areas and storage facilities for food processing applications.

Refrigerated Transport Applications

Selected PU insulation board structures can be used in refrigerated vehicle compartments, subject to the required mechanical strength, dimensions and installation design.

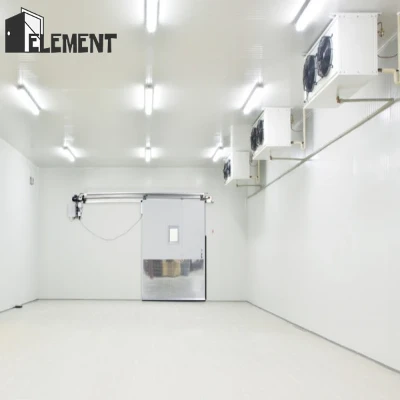

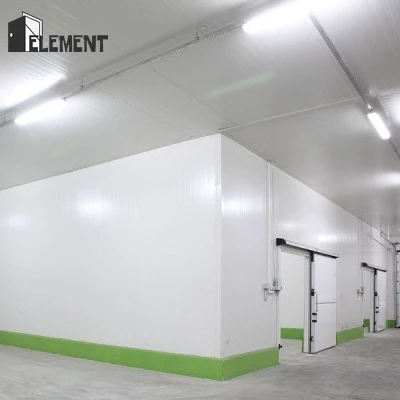

Element Polyurethane Insulation Board Application ScenariosElement Polyurethane Insulation Board Application ScenariosElement Polyurethane Insulation Board Application Scenarios





FAQ

Q1: What is a polyurethane insulation board?

It is an insulated composite board with a rigid polyurethane foam core and facing materials on both sides. It is used in building insulation and temperature-controlled applications.

Q2: What are the main advantages of PU insulation boards?

They offer effective thermal insulation, a lightweight composite structure, moisture resistance and flexible customization options.

Q3: What facing materials are available?

Common options include pre-painted galvanized steel, galvanized steel and selected stainless steel facings.

Q4: Can PU insulation boards be customized?

Yes. Thickness, width, length, color, surface finish and facing materials can be customized according to project requirements.

Q5: Are polyurethane insulation boards suitable for cold storage?

Yes. Metal-faced PU insulated panels are widely used in cold storage construction. For complete cold rooms, specialized cold room panels with suitable joint and connection designs are recommended.

Q6: What is the typical production lead time?

The typical production lead time is approximately 15–20 days after specifications, drawings and order details are confirmed. Actual timing depends on order quantity and production arrangements.
