Polyurethane Wall Panels

Polyurethane Wall Panels

Polyurethane wall panels offer superior thermal insulation properties, reducing energy consumption and maintaining consistent indoor temperatures. These panels are highly durable, resistant to wear and tear, and have a long service life, minimizing the need for frequent replacements. Polyurethane wall panels are lightweight, making them easy to handle and install, reducing labor costs and installation time.
Send Inquiry
Description
Technical Parameters

Polyurethane Wall Panels Manufacturer – Custom PU Insulated Wall Panels



Element is a professional manufacturer of polyurethane wall panels in China, providing custom PU insulated wall panels for cold storage facilities, food processing plants, industrial buildings, and commercial construction projects.

Our polyurethane wall panels feature a rigid PU foam core bonded between two metal facings. They provide excellent thermal insulation, structural stability, and a clean, durable surface.

With advanced continuous PU sandwich panel production lines, we can customize panel thickness, width, length, steel facings, surface finishes, colors, and connection systems according to project requirements.

Whether you need insulated wall panels for a cold room, freezer warehouse, or industrial building, Element provides manufacturing, technical support, and export services.



PU Insulated Wall Panel Specifications

Item Specification
Product Polyurethane Wall Panels
Core Material Rigid Polyurethane (PU) Foam
Panel Thickness 40–250 mm
PU Density 42 kg/m³ ±2
Thermal Conductivity ≤0.024 W/(m·K)
Facing Material PPGI / Galvanized Steel / Stainless Steel
Steel Thickness 0.4–0.7 mm
Effective Width 400–1120 mm
Maximum Length Up to 11,850 mm
Surface Finish Flat / Embossed / Micro Rib / V8
Color RAL Colors Available
Connection Cam Lock / Tongue-and-groove board
Application Cold Storage / Freezer / Food Factory / Industrial Building

Specifications can be customized according to project requirements. Actual performance depends on panel construction, materials, and testing conditions.

Contact now





Main Features of Polyurethane Wall Panels





Main Features of Polyurethane Wall Panels

1. Excellent Thermal Insulation

The rigid polyurethane foam core provides low thermal conductivity, helping reduce heat transfer through building walls. It is suitable for temperature-controlled buildings, cold rooms, and freezer facilities.

2. Strong and Durable Structure

The metal facings protect the PU foam core and provide a stable panel structure. Different steel materials and thicknesses are available for different project requirements.

3. Customized Panel Dimensions

Element offers customized panel thicknesses, widths, lengths, and surface finishes. Common options include 40-250 mm panels.

4. Easy Installation

Cam-lock connections and other customized joint systems help improve installation efficiency and panel alignment. They are especially suitable for modular cold storage construction.

5. Different Surface Materials and Colors

Customers can choose PPGI, galvanized steel, or stainless steel facings, with different surface patterns and RAL colors to meet project requirements.





Applications of Polyurethane Wall Panels







Polyurethane insulated wall panels are widely used in:

Cold Storage Facilities: Insulated walls for refrigerated warehouses and cold rooms.

Freezer Rooms: PU panels for frozen food storage and low-temperature facilities.

Food Processing Plants: Insulated wall systems for food production and processing areas.

Commercial Buildings: Energy-efficient insulated wall systems.

Industrial Buildings: Thermal insulation solutions for factories and workshops.

Clean Rooms: Insulated wall enclosures with smooth, easy-to-clean metal surfaces.

Applications of Polyurethane Wall Panels



Element PU Wall Panel Manufacturing

Henan Element new Materials Co.,Ltd

Element has been engaged in insulated panel manufacturing since 2012. Our factory is equipped with advanced continuous PU sandwich panel production equipment, including Italian PUMA production lines.

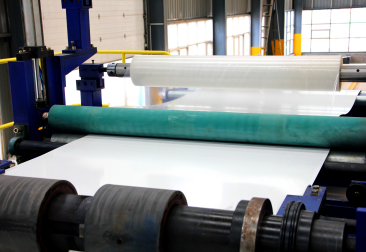

Our production process includes:

Metal coil unwinding and protective film lamination.

Steel sheet roll forming.

PU foam injection and foaming.

Double-belt continuous curing and forming.

Precision panel cutting.

Quality inspection and packaging.

We focus on panel dimensions, surface quality, foam density, bonding, and finished product inspection to ensure consistent manufacturing quality.

Element PU Wall Panel Manufacturing






Why Choose Element?







Element Clients Visit

Experienced Manufacturer: Established in 2012, with extensive experience in insulated panel production and international sales.

Advanced Production Equipment: Italian PUMA continuous PU production lines.

Customized Manufacturing: Custom thicknesses, lengths, widths, steel facings, and RAL colors.

Export Experience: Products supplied to customers in more than 50 countries.

Technical Support: Free project drawings, material quantity calculations, and installation guidance.

Quality Assurance: ISO management certification and CE-related product documentation.

Frequently Asked Questions





Q: 1. What thicknesses are available for polyurethane wall panels?

A: Common thicknesses include 50 mm, 75 mm, 100 mm, 150 mm, and 200 mm. Custom thicknesses are also available.

Q: 2. What is the thermal conductivity of PU wall panels?

A: Our PU foam core has a thermal conductivity of ≤0.024 W/(m·K), subject to the applicable test conditions.

Q: 3. Can polyurethane wall panels be customized?

A: Yes. We can customize panel dimensions, steel facings, colors, surface finishes, and connection systems according to project requirements.

Q: 4. Are PU wall panels suitable for cold storage?

A: Yes. PU insulated wall panels are widely used in chiller rooms, freezer rooms, and refrigerated warehouses because of their excellent thermal insulation properties.

Q: 5. What is the production lead time?

A: The typical production lead time is around 15–20 days after technical specifications and the order are confirmed. Actual delivery time depends on order quantity and production schedule.

Q: 6. Do you provide installation support?

A: Yes. We provide installation drawings, online technical guidance, and engineering support for qualified projects.



Get a Quote for Polyurethane Wall Panels

Looking for a reliable polyurethane wall panel manufacturer in China?

Send us your required panel thickness, dimensions, steel material, quantity, and project application.

Element will provide a customized solution and quotation for your project.

Contact Element for Technical Support and Factory Direct Pricing.
