Products Description
Superior Insulation: PUF panels offer excellent thermal insulation properties, maintaining precise temperature control and reducing energy consumption.
Energy Efficiency: By minimizing heat transfer, PUF panels help to lower energy costs associated with cold room operation.
Customization: PUF panels are available in various thicknesses, sizes, and configurations, allowing for customization to suit specific cold room requirements.
Ease of Installation: Lightweight and easy to handle, PUF panels facilitate quick and straightforward installation, reducing labor time and costs.
Durability: With a sturdy construction and resistance to moisture, corrosion, and impact, PUF panels are durable and long-lasting.
Products Specification
|
Products Title |

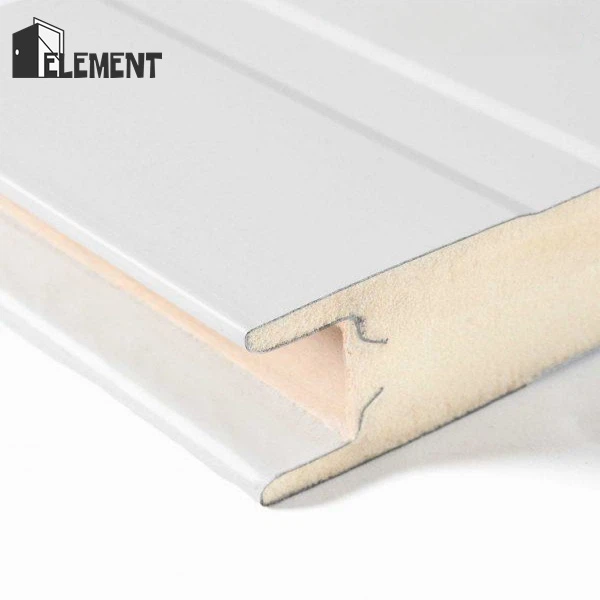

puf panel for cold room |
|
PPGI Thickness |
0.4-0.7mm for choose |
|
Panel Thickness |
Chiller Room:70/100mm Freezer Room:150mm Blasting Room:200mm |
|
Working Temperature |
Chiller Room:about 0℃ Application:fruits and vegetables Freezer Room:-18℃ Application:for storage meats Blasting Room:-35℃ Application:quick-frozen food |
|
Color |
any other required on RAL Color |
|
PU Density |
45kg/m³(±2) |
|
Effective Width |
400-1120mm for wall panel,1000mm for roof panel |
|
Length |
Max 11.85mm for 40HQ container or customized |
|
U Value(w/mk) |
PU:≤0.024 |
|
Fire Rating |
PU:CLASS B1 |
|
Surface Texture |
Flat/Embossed Pattern/V8/Micro Ripple |
Factory Workshop
Production Process
Coated Steel Coiling
Electrostatic Film Laminating
Pressing Machinery
Double Track Foam Composite
Precise Machine Cutting
Panel Cooling
Package
To be Loaded
Project Cases
Beverage Industry: Breweries and beverage manufacturers utilize cold rooms with PUF panels for storing beverages at optimal temperatures to maintain quality and freshness.
Supermarkets and Retail Stores: Cold rooms with PUF panels are employed by supermarkets and retail stores for storing frozen and refrigerated goods, ensuring product quality and availability.
Hospitality Industry: Hotels, restaurants, and catering businesses utilize cold rooms with PUF panels for storing food ingredients and prepared meals at safe temperatures.
Research Laboratories: Cold rooms equipped with PUF panels are used in research laboratories for storing biological samples, reagents, and other temperature-sensitive materials.
Agricultural Produce: PUF panels are used in cold storage facilities for preserving agricultural produce such as fruits, vegetables, and flowers, extending their shelf life and maintaining freshness.
FAQ
Everything You Need to Know
'lt is awesome to work with Element. amazingy organized,easy to communicate with. responsive with next iterations,and beautiful work.
What temperature range can PUF panels maintain in cold rooms?
PUF panels can maintain temperatures typically ranging from -20°C to -30°C (-4°F to -22°F) in cold storage environments.
Are PUF panels suitable for food storage?
Yes, PUF panels are commonly used in cold rooms for storing perishable food items such as fruits, vegetables, meat, and dairy products due to their hygienic properties and excellent insulation
What is the price of Puf Panel For Cold Room?
Different materials and thicknesses have different prices, generally $14-18 per square meter.
How long is the delivery time and payment method ?
The delivery time is generally 15-20 days, 30% deposit is paid in advance, and the balance is paid before shipment.
