Pur Panel Cold Storage Room

Pur Panel Cold Storage Room

PUR (Polyurethane Foam) panels for cold rooms offer excellent insulation properties, making them ideal for maintaining precise temperature control in various applications. These panels consist of a core of high-density polyurethane foam sandwiched between two layers of metal sheets, typically galvanized steel or stainless steel. PUF panels provide superior thermal efficiency, minimizing energy loss and reducing operational costs. They are lightweight, easy to install, and resistant to moisture, corrosion, and fire. PUF panels are customizable in terms of thickness, size, and finish, making them suitable for cold storage facilities, food processing plants, pharmaceutical storage, and other temperature-sensitive environments.
Send Inquiry
Description
Technical Parameters

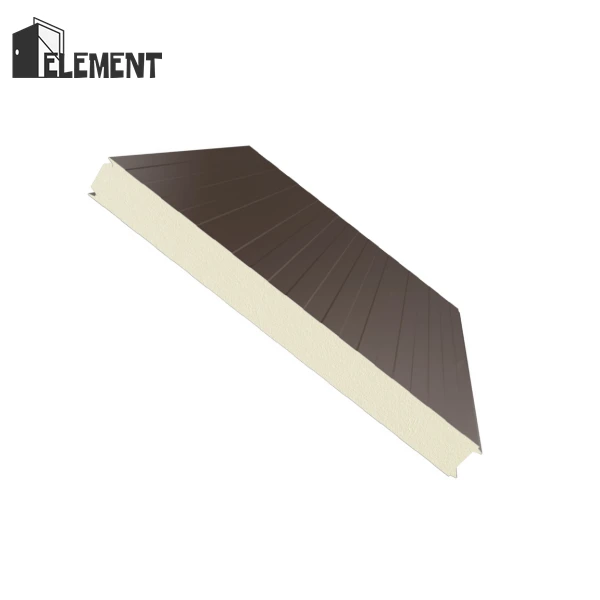

PUR Panel for Cold Storage Rooms





Element manufactures PUR panel cold storage room using high-density polyurethane insulated sandwich panels. Designed for temperature-controlled environments, our cold room systems help maintain stable indoor temperatures, reduce heat transfer and improve energy efficiency.

As a cold storage panel manufacturer in China, Henan Element New Materials provides customized panel thicknesses, dimensions, surface materials, colors and connection systems for different refrigeration projects.

Our PUR cold storage solutions are suitable for fruit and vegetable storage, meat freezers, seafood storage, food processing facilities and other temperature-controlled buildings.



Products Specification

Products Title

pur panel cold storage room

PPGI Thickness

0.4-0.7mm for choose

Panel Thickness

Chiller Room:75/100mm

Freezer Room:150mm

Blasting Room:200mm

Working Temperature

Chiller Room:about 0℃

Application:fruits and vegetables

Freezer Room:-18℃

Application:for storage meats

Blasting Room:-35℃

Application:quick-frozen food

Color

any other required on RAL Color

PU Density

42kg/m³(±2)

Effective Width

400-1120mm for wall panel

Length

Max 11.85mm for 40HQ container or customized

Thermal conductivity

≤0.024 W/(m·K)

Fire Rating

PU:CLASS B1

Surface Texture

Flat/Embossed Pattern/V8/Micro Ripple

Contact now

PUR Panel Manufacturing at Element Factory

PUR Panel Manufacturing at Element Factory

Element operates Italian PUMA polyurethane panel production lines for manufacturing insulated sandwich panels.

Our production process includes steel coil uncoiling, surface forming, protective film application, preheating, high-pressure polyurethane foaming, double-belt continuous curing, cutting and finished panel inspection.

The controlled foaming process helps maintain consistent panel thickness, core density and insulation quality.

With manufacturing experience, technical personnel and export experience in international markets, Element supports distributors, contractors, cold storage builders and refrigeration companies.

We can also provide production updates, inspection photos, loading records and online installation guidance.





Applications of PUR Cold Storage Panels



PUR insulated panels are widely used in temperature-controlled facilities, including:

Fruit and Vegetable Cold Rooms

Used for maintaining suitable temperatures for fresh produce during storage and distribution.

Meat and Seafood Freezers

Suitable for frozen meat, fish and seafood storage, with insulation thickness selected according to the required temperature.

Food Processing Facilities

Used in refrigerated processing rooms, food preparation areas and temperature-controlled production spaces.

Commercial Walk-In Coolers

Suitable for supermarkets, restaurants, hotels and catering businesses that require customized cold storage rooms.

Pharmaceutical Storage

Can be used in temperature-controlled storage facilities where the required insulation and environmental conditions are properly specified.

Applications of PUR Cold Storage Panels



Why Choose Element for PUR Cold Storage Panels?

element clitns visit factory

Direct Manufacturer: In-house production of polyurethane insulated sandwich panels.

Customized Production: Panel thickness, length, width, surface material and color can be customized.

Quality Control: Production inspection and relevant product testing documentation.

Export Experience: Supplying cold storage panels to customers in more than 50 countries.

Project Support: Free preliminary drawings and material quantity calculations for suitable projects.

After-Sales Service: Online installation guidance and a 5-year product warranty under the applicable warranty terms.

Contact Element to discuss your cold storage project and receive a customized panel quotation.

Frequently Asked Questions

1. What is the difference between PUR and PIR cold storage panels?

PUR and PIR both use polyurethane-based insulation materials. They differ in chemical structure and fire performance. The appropriate panel should be selected according to the project's insulation, fire-safety and certification requirements.

2. What thickness is suitable for a -18°C freezer room?

150mm PUR panels are commonly used for -18°C freezer rooms. The final selection depends on the room dimensions, ambient conditions and refrigeration design.

3. Can Element customize PUR panel dimensions and colors?

Yes. Element offers customized panel thicknesses, lengths, facing materials and RAL colors according to project requirements.

4. How long does PUR panel production take?

The typical production lead time is around 15–20 days after technical details, order specifications and deposit are confirmed. Actual delivery schedules depend on order quantity and production arrangements.

5. Does Element provide installation support?

Yes. Element provides online installation guidance and can discuss on-site technical support for suitable projects.



Request a PUR Cold Storage Room Quotation

Tell us your cold room dimensions, required storage temperature, panel thickness, facing material and destination port.

Element's sales and technical teams will help you select suitable PUR panels and prepare a customized quotation.

Contact Element for Factory-Direct PUR Cold Storage Panel Solutions.
