Products Description
Element walk-in cold storage units utilize high-density polyurethane insulation panels and an energy-efficient refrigeration system, offering superior insulation performance, reliable temperature control, and a 15-year lifespan.
The dedicated cam-lock panel design allows for quick installation and reuse.Freezer room temperature range: -18°C to -35°C; stainless steel finish is available for food-grade requirements.
We offer heavy-duty insulated freezer doors with safety escape handles.Custom sizes and layouts are available.
|
Item |
Specification |
|
Product |
PU SANDWICH PANEL |
|
Facing Material |
Pre-painted galvanized steel (PPGI), stainless steel or other options upon request |
|
Steel Thickness |
0.4-0.7 mm optional |
|
Panel Thickness |
40 / 50 / 75 / 100 / 120 / 150 / 200 / 250 mm |
|
PU Density |
42 kg/m³ (±2 kg/m³) |
|
Effective Width |
400-1120 mm for wall panels, depending on panel type |
|
Length |
Up to 11.85 m for 40 HQ container loading, or customized |
|
Thermal Conductivity |
≤0.024 W/(m·K) |
|
Fire Rating |
B1 / B2 options available, depending on panel type and project requirement |
|
Surface Texture |
Flat, embossed, micro-ribbed or wide-ribbed |
|
Application |
Cold room, freezer room, food factory, warehouse, workshop and clean storage area |

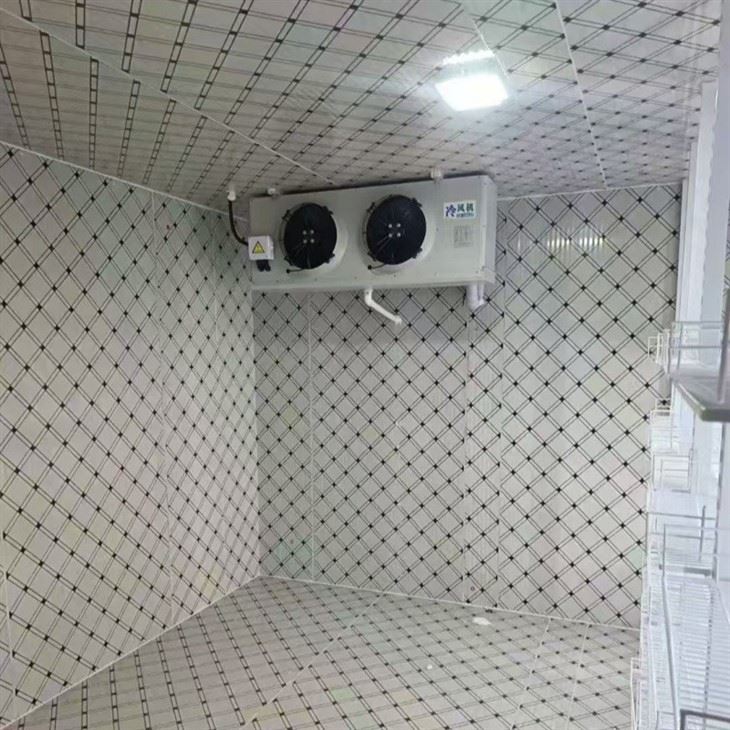

Element Walk in Freezer
1. Insulating glass door, available with either refrigeration or freezing electric heating. An electric lock can be added upon request, and a left/right interchangeable glass door structure is also available.
2. The entire door frame is constructed using aluminum alloy welding technology. The frame can be freely assembled according to customer needs. Standard door frames are equipped with electric heating and LED waterproof lights. The frame profiles are made entirely of aluminum alloy, and colors can be customized, with silver and black being the most common.
3. Depending on the customer's operating environment, options include a standard door frame, refrigeration electric heating, and freezing electric heating functions, ensuring the glass door remains condensation-free and fog-free under all operating conditions. Multiple stop and limit mechanisms and automatic return structures are available as options, providing convenient access for customers and service personnel.
4. Applications: Chain convenience store projects, online cold chain delivery, large chain supermarkets, medical projects (vaccine banks, red blood cell banks), and other related replenishment warehouses.
5. The door frame has an excellent overall structure, is easy to install, and offers good insulation.
Powerful Solutions For Business Growth
- Double-glazed sliding doors with excellent insulation; custom sizes available.
- The door frame uses narrow-frame aluminum alloy profiles, compatible with both individual and continuous handles.
- Both the door frame and glass door are equipped with electric heating, and the door frame features an LED waterproof light.
- It includes a 90-degree stop limit and automatic return. All door hardware is made of 304 stainless steel.
The new type of backup cold storage unit uses 100mm thick double-sided color steel polyurethane insulation panels, assembled from multiple panels. It typically has a side door that allows for easy access with a small trolley.
The front glass door design allows the cold storage unit to combine freezing and refrigeration, storage, and display functions, making it suitable for product display and sales. It is commonly found in convenience stores, fresh food supermarkets, and similar locations.
Our Certificate
FAQ
Q: How is the door seal ensured?
A: Tongue & groove cam-locking panels create a tight, leak-proof connection.
Q: How is condensation prevented?
A: Built-in 110V/60Hz door heater prevents surface condensation.
Q: How is the door bottom protected?
A: Diamond tread kick plates provide impact resistance and durability.
Q: How is user safety ensured?
A: Interior safety release prevents accidental entrapment.
Q: How is door access controlled?
A: Keyed locking handle provides effective access control.
Q: Is installation and transport easy?
A: Yes. 36"W x 76"H door size allows easy transport, and assembly is fast and simple.
