Products Description
Element Insulated Sectional Doors are suitable for both interior and exterior doors of various buildings. Our torsion spring system, calculated based on the door's weight, provides excellent balance. We include safety protection devices such as wire rope breakage prevention and torsion spring breakage prevention. Door panels are available in 40-80mm thicknesses, and we can also configure loading and unloading platforms, door seals, parking assistance, and safety devices.
Product Specification
|
Products Title |
Insulated Sectional Doors |
|
Thickness |
40-80mm for choose |
|
Pattern |
One lines or Three Lines,Smooth or Flat with wooden grain |
|
Metal Material |
PPGI(Pre -Painted Galvanized Steel Coil)0.35-0.6mm for choose |
|
Color |
White,RAL 7016,Brown,Silver,Golden Oak,other color could be customized. |
|
Panel Width |
500mm or Customized |
|
Window |
Suggest one meter one pcs window in the middle panel. |
|
Passing Door |
pedestrian door size:800*1800mm or customized. |
|
Door Panel Weight |
8.3kg/m2-10.2kg/m2 |
|
Insulation |
PIR Foam with 45KG/M³ |
|
Hardware |
2.0mm galvanized hardware,Spring broken device, Cable broken device. |
|
Package |
One set door panel for 2 package,door accessories for 1 package |
|
Lifting Type |
Vertical Lift/High Lift/Standard Lift |
|
Warranty |
5 Years for panel.2 Years for hardware. |
Factory Workshop
At Element, we continuously optimize lean manufacturing, improve overall product quality, and increase R&D investment. In the first half of 2021, we achieved full-chain independent production of industrial door products. This reform is unprecedented in the industry (from large-scale production lines producing a variety of high-quality door panels to precisely calculated industrial torsion springs, tracks, hinges, rollers, shaft supports, perforated angle irons, and supporting special accessories, all have formed a systematic independent production process). This reform has resulted in better quality control and cost advantages. We will continue to provide our partners with even better, comprehensive services with a brand-new look, 100% enthusiasm, and as always
Products Project
successful cases
Food Processing and Warehousing
In an industrial area of Lima, Peru, Element expanded the warehousing facilities for a leading poultry processing plant. These doors not only provide robust temperature control for raw materials and finished products, but their smooth surfaces and sealed structures also effectively prevent mold growth.
Dry Goods Warehousing Facility
Serving a manufacturer in the industrial corridor south of Manila, Philippines, Element's Insulated Sectional Doors were used throughout their newly built integrated warehouse in Batangas Province. The facility combines raw material cold storage, finished product warehouses, and light industrial manufacturing workshops.
US Midwest Cold Chain Logistics Center Expansion
Faced with the explosive growth of fresh food logistics in US e-commerce, a leading third-party logistics provider selected Element's Insulated Sectional Doors to upgrade its distribution center in its Midwest hub.
Auckland Cold Storage and Logistics
Location: Auckland, New Zealand
Application Areas: Cold Storage, Logistics
To meet New Zealand's rapidly growing demand for fresh produce exports, Element provided a comprehensive insulated door solution for a cold storage logistics hub near Auckland Airport. This project primarily handled dairy and meat products requiring strict temperature control.

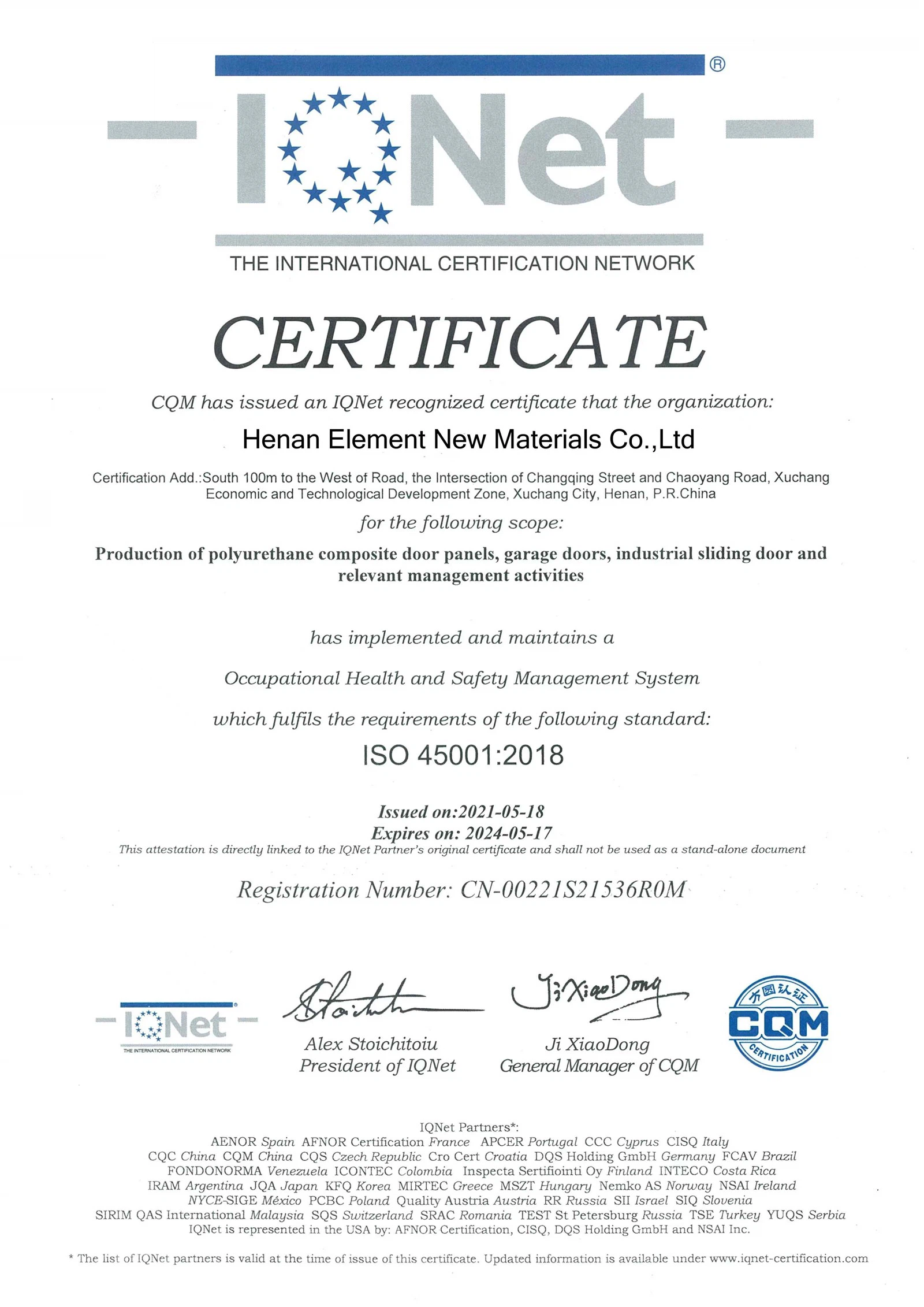

Our Certificate
Why choose us
All door panels are produced using internationally advanced large-scale production lines, with strict quality assurance and control at every stage of the manufacturing process. We possess first-class manufacturing equipment and processes, and are equipped with advanced testing and experimental equipment and technologies.
door Warranty
5 Years for panel.2 Years for hardware.
Standardized Production
Passed ISO9001 certification and obtained relevant patent certificates.
High-Quality Customized Services
we strictly implement an integrated management system for quality, environment, and occupational health and safety
FAQ
Q: Can I customize the color of the door?
A: Yes. We stock standard colors including White, RAL 7016 (Anthracite Grey), Brown, Silver, and Golden Oak. However, we also offer full customization-if you have a specific RAL color code, we can produce it for you.
Q: What is the standard panel width?
A: The standard modular width is 500mm. However, we also offer customized widths to ensure the door fits your opening dimensions perfectly.
Q: Can I have windows on the sectional door?
A: Absolutely. We recommend installing one window per square meter, typically positioned in the middle panel to allow natural light into the facility while maintaining structural integrity.
Q: What is the weight of the door panel?
A: The weight varies based on thickness and steel gauge, generally ranging between 8.3kg/m² and 10.2kg/m². This helps in determining the appropriate spring and motor requirements.
