Products Description

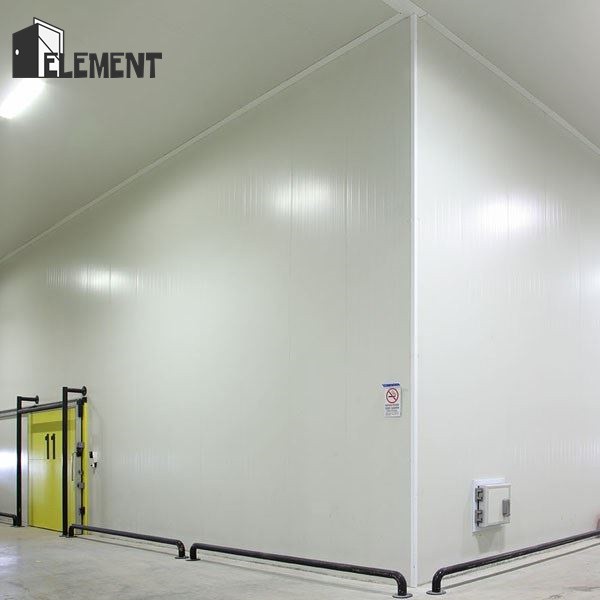

Element Polyurethane Board 100mm is generally used for chiller rooms, suitable for temperatures from 0-5℃. It is typically white-gray in color, with a polyurethane density of 45kg/m³. We can also supply cold storage doors, etc.
In addition, 100mm Polyurethane Board can also be used for exterior wall insulation, such as warehouse and factory exterior walls and roof tiles. It offers good insulation and can be made up to 11.85 meters in length. The width is generally 1 meter. We can also provide free measurement drawings, layout, and quantity calculations based on your project.
Products Specification
|
Products Title |
Polyurethane Board 100mm |
|
PPGI Thickness |
0.4-0.7mm for choose |
|
Panel Thickness |
Chiller Room:70/100mm Freezer Room:150mm Blasting Room:200mm |
|
Working Temperature |
Chiller Room:about 0℃ Application:fruits and vegetables Freezer Room:-18℃ Application:for storage meats Blasting Room:-35℃ Application:quick-frozen food |
|
Color |
any other required on RAL Color |
|
PU Density |
45kg/m³(±2) |
|
Effective Width |
400-1120mm for wall panel,1000mm for roof panel |
|
Length |
Max 11.85mm for 40HQ container or customized |
|
U Value(w/mk) |
PU:≤0.024 |
|
Fire Rating |
PU:CLASS B1 |
|
Surface Texture |
Flat/Embossed Pattern/V8/Micro Ripple |
Factory Workshop
Polyurethane Board 100mm Production Workshop
Element has purchased and officially put into operation a fully automated polyurethane energy-saving panel production line from PUMA in Italy.
It is one of the largest green energy-saving panel manufacturers in China, with an annual output exceeding 1 million square meters. This 180m long production line requires only 7 people to operate perfectly.
The polyurethane composite panel production process includes: unwinding and laminating → pressing and molding → fabric application → high-temperature foaming and double-track curing → cooling → cutting → stacking.
Project Cases
our casey
Freezer room Polyurethane Board 100mm Project
Chiller room
The Australian chiller room project choose 100mm polyurethane sandwich panels (0.5mm PPGI) for 650m². Key to success is strict compliance with local Australian standards: using low-GWP refrigerants per licensing schemes, ensuring electrical safety per AS/NZS 3000, and installing doors with internal safety releases.
Equipment selection must account for high ambient temperatures. All installation and commissioning must be handled by licensed technicians with ARCTICK certification.
Combining quality materials with rigorous local compliance is essential for a safe, efficient, and legally sound project.
Freezer Room
Freezer Room in the US uses Element 150mm cold storage panels. Element provides free drawing measurements and labels the cold storage panels with codes. Customers only need to assemble the panels according to the codes and drawings. The panels use hook-type joints, which can be easily connected with tools.
- Building Insulation: Polyurethane boards can be used as insulation material in buildings, including residential, commercial, and industrial structures. They help to improve energy efficiency by reducing heat transfer through walls, roofs, and floors.
- Cold Storage Facilities: Due to their excellent thermal insulation properties, 100mm polyurethane boards are ideal for use in cold storage facilities such as refrigerated warehouses, cold rooms, and freezer rooms. They help maintain consistent temperatures and prevent heat ingress.
- HVAC Duct Insulation: Polyurethane boards can be applied as insulation for HVAC (Heating, Ventilation, and Air Conditioning) ducts to minimize heat loss or gain during the distribution of conditioned air.
- Pipe Insulation: These boards can also be used for insulating pipes to prevent heat loss or condensation buildup in plumbing and industrial piping systems.
- Soundproofing: Polyurethane boards can contribute to soundproofing applications when used as part of a composite wall system or acoustic barrier.
- Roofing Systems: In roofing applications, polyurethane boards can be used as part of insulated roofing systems to provide thermal insulation and improve energy efficiency.
FAQ
Everything You Need to Know
'lt is awesome to work with Element. amazingy organized,easy to communicate with. responsive with next iterations,and beautiful work.
How are polyurethane boards installed?
Polyurethane boards are typically installed by fixing them directly onto the substrate using adhesive or mechanical fasteners. Joints between boards are sealed with compatible sealants to ensure thermal performance..
Can polyurethane boards be used in fire-rated constructions?
Yes, polyurethane boards with appropriate fire-resistant properties can be used in fire-rated constructions. It's essential to choose products that comply with relevant fire safety standards and regulations for the intended application.
What is the price of Polyurethane Board 100mm?
The price varies according to the size and type of door panel, generally $15-17 per SQM.
What is the delivery time and payment method ?
Deliver time always 15-20 days, and advance payment TT 30% ,balance payment TT 70% before delivery.
