Products Description

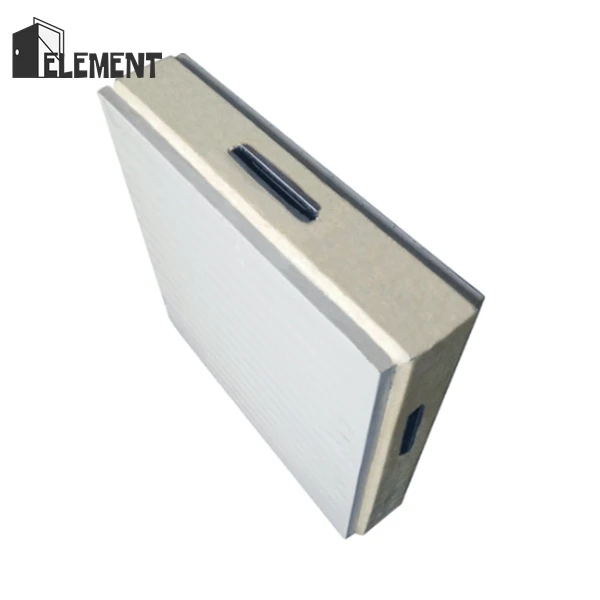

Element Walk-in cooler panels consist of a polyurethane insulation core with facings made of either color-coated steel or stainless steel; they typically feature Cam-Lock connections. They can also be combined with double-glazed insulating glass for applications such as supermarket display cases.
We offer one-stop color-coated steel services, including customization based on temperature and dimensions, color matching, and the provision of installation accessories.Walk in cooler panel provide thermal conductivity (0.024W/m·K) ensures superior energy efficiency.
Products Description
|
Item |
Specification |
|
|
Chiller Room |
Typical temperature: -5°C to +5°C. |
75 mm or 100 mm panel is commonly selected, depending on room temperature and climate conditions. |
|
Freezer Room |
Typical temperature: -15°C to -25°C. |
150 mm panel is commonly selected for stable low-temperature storage. |
|
Blast Freezer |
Typical temperature: -30°C to -40°C. |
200 mm panel is commonly selected for high insulation demand and fast freezing applications. |
Factory Production
Raw Materials
This sandwich panel features pre-coated galvanized steel (0.4–0.8 mm) or SS304 stainless steel outer facings, combined with a rigid PU or PIR foam core ranging from 40 mm to 250 mm in thickness. Thermal Insulation: Low thermal conductivity of 0.024 W/m·K delivers outstanding energy-saving performance.
Cam Lock System: The built-in cam lock enables rapid, airtight assembly and removes the need for extra sealants. Durability: Corrosion-resistant metal surfaces paired with moisture-proof foam core support a service life exceeding 15 years.
Fire Resistance: The PIR version provides enhanced flame retardancy, reaching B1 fire rating. Customization: Panels can be customized with widths up to 11850 mm and multiple surface finish options.
Walk in Cooler
We offer not only high-quality, customized PUF (polyurethane) cold storage panels but also comprehensive, one-stop cold storage solutions.
Based on factors such as the client's site size, type of stored goods, target temperature, and budget, the Element team precisely calculates and recommends the optimal panel specifications-including thickness, density, and material composition-as well as the appropriate refrigeration units.
one-stop solution
professional team
high quality
Many overseas clients travel long distances to tour Element's factory and inspect our PU sandwich panel production line in person. After evaluating our raw material screening, continuous foaming technology and finished panel quality, they gain strong confidence in our PU panel performance and manufacturing strength. Many of these site visits evolve into long-term partnerships.
Element supplies PU cold storage sandwich panels to projects across over 50 countries for diverse walk-in cold room and freezer applications. We keep refining panel quality and after-sales services to satisfy cold chain requirements for global contractors.
OUR CERTIFICATION
Element holds professional CE test certificates as well as PU fire‑rating inspection reports for customs declaration purposes. Should you require any documentation for project bidding, customs clearance or local compliance verification, please feel free to contact our sales manager to obtain relevant files.
Everything You Need to Know
Q: What thermal performance do Element PU/PIR panels provide?
A: The foam core features low thermal conductivity of 0.024W/m·K, delivering outstanding energy efficiency for cold storage projects.
Q: How long is the service life of Element cold room panels?
A: With corrosion-resistant metal surfaces and moisture-proof foam core, the panels can serve for more than 15 years.
Q: Can I visit Element factory to check panel quality?
A: Yes. We welcome global customers for on-site factory tours. We also provide cloud-based virtual factory tours via real-time video conferences to verify our production capacity and product quality.
Q: What production equipment does Element use?
A: Element introduced the Italian PUMA production line in 2012 to realize fully automated polyurethane foaming, forming, cutting and packaging.
