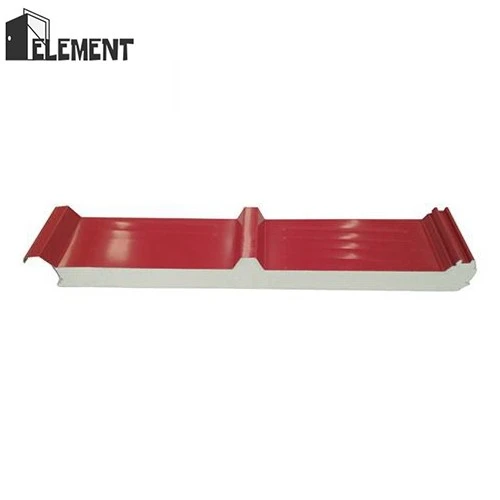

Pu Insulated Panel for Roof

Pu Insulated Panel for Roof

1.PU insulated panel for roof ,exceptional thermal insulation properties reduce energy consumption.
2.Sturdy construction with a lightweight design facilitates easy installation while ensuring long-lasting performance.
3.Highly resistant to moisture, corrosion, and mold growth, ensuring structural integrity.
4.Available in various finishes, colors, and dimensions to accommodate diverse architectural needs.
4.Speedy and hassle-free installation minimizes project duration and labor costs.
Send Inquiry
Description
Technical Parameters
Products Description



Polyurethane (PU) roof insulation panels are available in a variety of profiles and finishes, including designs compatible with photovoltaic (PV) systems for solar panel integration; they feature innovative designs and offer a long service life. Options include high-weather-resistance PVDF coatings, which can extend the service life to up to 20 years.

Panel thicknesses range from 50mm to 200mm, and lengths are precision-cut to customer specifications. The standard width is 1 meter, and while common colors include white-gray and silver-gray, custom colors are also available upon request.



Product Specification





PU ROOF PANEL



Products Title

PU insulated panel for roof

PPGI Thickness

0.4-0.7mm for choose

Panel Thickness

40/50/75/100/120/150/200mm

Color

any other required on RAL Color

PU Density

42kg/m³(±2)

Effective Width

400-1120mm for wall panel,1000mm for roof panel

Length

Max 11.85m for 40HQ container or customized

U Value(w/mk)

PU:≤0.024

Fire Rating

PU:CLASS B1

Surface Texture

Flat/Embossed Pattern/V8/Micro Ripple

Application

Factory panel/cold storage/workshop

Contact now




Factory Workshop



How we Produced
COATED STEEL UNCOILING





Coated Steel Uncoiling

The production process begins with the precise uncoiling of pre-coated steel coils. This initial stage requires careful handling to ensure the integrity of the coated surface is maintained, providing a flawless foundation for subsequent processing steps.

ELECTROSTATIC FILM LAMINATING





Electrostatic Film Laminating

The uncoiled steel undergoes electrostatic film lamination. Utilizing advanced electrostatic adsorption technology, a protective film is permanently bonded to the steel surface. This enhances both corrosion resistance and visual appeal while safeguarding the material during further fabrication.

FORMING OF COATED STEEL SHEET





Forming of Coated Steel Sheet

The laminated steel is then fed into high-precision forming machines. Through controlled roll-forming processes, the flat sheets are accurately shaped into panel profiles that meet exact garage door design specifications.

DOUBLE TRACK FOAM COMPOSITE





Double Track Foam Composite



Formed panels proceed to foam injection. Polyurethane foam is rigorously injected under pressure into the double-track panel structure, creating a continuous core that significantly improves thermal insulation and acoustic performance.

PRECISE MACHINE CUTTING





Precise Machine Cutting

Finally, the composite panels undergo computer-numerical-controlled (CNC) cutting. This automated process ensures each panel is trimmed to exact dimensional requirements, guaranteeing consistency and perfect fit during door assembly.

PAKCAGE OF PU SANDWICH PANEL





Pakcage of pu sandwich panel

Pack the boards according to the customer's cut dimensions and label them to ensure they are not damaged during loading and unloading.





the final view of project

PU SANDWICH PANEL CASE FOR FACTORY & BUILDINGS.

PU SANDWICH WALL PANEL
 PU SANDWICH PANEL
 PU SANDWICH PANEL
 PU SANDWICH PANEL

Polyurethane boards have a wide range of applications due to their excellent thermal insulation, waterproofing, moisture resistance, and high strength:

In the construction industry, they are commonly used for thermal insulation and energy saving of walls, roofs, and floors, as well as for the enclosure structures of steel-framed factories;

In the cold chain industry, they are the best insulation material for cold storage facilities, refrigerated trucks, and refrigerated containers.

Retail Structures: Retail buildings like supermarkets and shopping centers often use PU insulated panels for roofing due to their ability to create a comfortable internal environment and reduce energy expenses.

Sandwich Panel Install related accessories


The Pu Insulated Panel for Roof inevitably requires various edging accessories.

We offer free on-site surveying and drawing services to accurately measure the dimensions of your required wall panels and ceiling panels, and calculate all the auxiliary materials needed during installation.



Including but not limited to: raphe molding, self-tapping screws, waterproof rivets, stitching screws, roof backbone covering/flashing, inner and outer roof ridge panels, positioning grooves, sealing strips, color-coated steel sheets, 85x30 standard accessories, external gutter trim, corner trim (Type I/II), cornice trim, braces, and galvanized sheets, etc.



You only need to provide one drawing, and we will provide all the necessary installation accessories.

Sandwich-Panel-Accessory
PU Solar Roof Panel

The photovoltaic roof panel features a high-wave peak and concealed snap-on design, eliminating the need to drill screws directly into the roof. Combining solar power generation technology with building roofing materials.

it provides the waterproofing, insulation, and load-bearing functions of traditional roofs while converting solar energy into electricity using surface photovoltaic modules, achieving green, low-carbon, and energy-saving performance.





Our Certificate

Element Certification



Element Certification

Element Certification



Element Certification

our services


Free On-Site Surveying: Accurate measurements for wall and ceiling panels.

Customized Technical Drawings: Detailed drawings tailored to your project requirements.

Complete Accessory Calculation: All necessary edging profiles, flashings, and auxiliary materials calculated in advance.

One-Stop Supply: PU sandwich panels and matching installation accessories from one supplier.

Simplified Installation: Better material coordination helps reduce installation delays and unnecessary costs.

Element - Your Reliable PU Sandwich Panel Manufacturer for Complete Insulation Solutions.

FAQ






Q: 1. Are PU insulated panels customize the color?

A: Yes, these panels support any RAL Color.

Q: 2. Can PU insulated panels be customized for specific roofing needs?

A: Yes, these panels can be tailored to fit various roof designs, shapes, and sizes, offering flexibility for different architectural requirements.

Q: 3. Are PU insulated panels fire-resistant?

A: PU panels are available with fire-retardant properties, enhancing their safety features and making them suitable for various building regulations and codes.

Q: 4. Are PU insulated panels easy to install?

A: Yes, these panels are known for their ease of installation, reducing construction time and labor costs compared to traditional roofing materials.

Q: 5.. What's your delivery time and payment term?

A: Payment Term: 30% TT advance payment, 70% balance payment before delivery.
