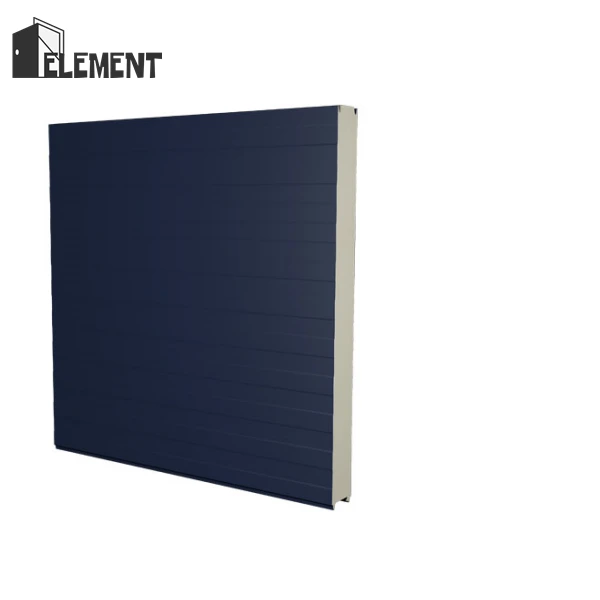

Modular Cold Rooms

Modular Cold Rooms

Our Modular Cold Rooms provide flexible, efficient, and reliable cold storage solutions for a wide range of industries. Designed with a modular structure, these cold rooms can be customized according to your available space, storage capacity, temperature requirements, and specific application needs.
Send Inquiry
Description
Technical Parameters

Products Description







Product Specification



Element modular cold rooms adopt high‑performance B1 fire‑rated PU insulated sandwich panels with foam density of 42kg/m³ and reliable refrigeration units featuring hydraulic tube‑expansion evaporators with optional electric or thermal oxidation defrosting, delivering waterproof, antifreeze and pressure‑resistant performance with stable temperature control ranging from 0℃ chill storage,‑18℃ freezer storage down to‑35℃ blast freezing.

Featuring flexible modular construction for quick on‑site assembly, disassembly, relocation and expansion, these cold rooms support custom dimensions, RAL colours and surface finishes, and suit small‑scale to large‑scale commercial projects for fruits, vegetables, meat, seafood, pharmaceuticals, supermarkets, restaurants and hotels, with remote monitoring available for real‑time system status tracking.



Application Temperature Range Recommended Panel Thickness
Chiller Room -5°C to +5°C 75/ 100 mm
Freezer Room -15°C to -25°C 150 mm
Blast Freezer -30°C to -40°C 200 mm

Factory Workshop



How we Produced
Cold Storage Insulation Panels





Coated Steel Uncoiling

The production process begins with the precise uncoiling of pre-coated steel coils. This initial stage requires careful handling to ensure the integrity of the coated surface is maintained, providing a flawless foundation for subsequent processing steps.

Cold Storage Insulation Panels





Electrostatic Film Laminating

The uncoiled steel undergoes electrostatic film lamination. Utilizing advanced electrostatic adsorption technology, a protective film is permanently bonded to the steel surface. This enhances both corrosion resistance and visual appeal while safeguarding the material during further fabrication.

Cold Storage Insulation Panels





Forming of Coated Steel Sheet

The laminated steel is then fed into high-precision forming machines. Through controlled roll-forming processes, the flat sheets are accurately shaped into panel profiles that meet exact garage door design specifications.

4





Double Track Foam Composite



Formed panels proceed to foam injection. Polyurethane foam is rigorously injected under pressure into the double-track panel structure, creating a continuous core that significantly improves thermal insulation and acoustic performance.

Cooking





Precise Machine Cutting

Finally, the composite panels undergo computer-numerical-controlled (CNC) cutting. This automated process ensures each panel is trimmed to exact dimensional requirements, guaranteeing consistency and perfect fit during door assembly.

Cold Storage Insulation Panels





Pakcage of pu sandwich panel

Pack the boards according to the customer's cut dimensions and label them to ensure they are not damaged during loading and unloading.





the final view of project

PU SANDWICH PANEL CASE FOR COLD STORAGE ROOM

Cold Storage Insulation Panels
Cold Storage Insulation Panels
Cold Storage Insulation Panels

Cold Storage Insulation Panels



Sandwich Panel Install related accessories


The Panels for Cold Room inevitably requires various edging accessories.

We offer free on-site surveying and drawing services to accurately measure the dimensions of your required wall panels and ceiling panels, and calculate all the auxiliary materials needed during installation.



You only need to provide one drawing, and we will provide all the necessary installation accessories.

Cold Storage Insulation Panels



our services


Choose the best panel that suits your building best

Color Support Customize

We support RAL color chart customization.

Free drawing survey

our 12 person technical team will calculate the panel quantity and provide a construction plan.

Product after-sales service

We offer a 5-year product after-sales guarantee. If any product quality issues prevent project delivery, we will assume full responsibility.

Quality products

All products undergo sampling inspection by specialized technicians before leaving the factory, and the entire loading process is recorded with photos to ensure safe delivery of goods.

Fast delivery

Once the board dimensions are confirmed and we receive the deposit, we guarantee delivery within 15-20 days.

Free Samples

Free samples will be mailed to you. Please contact our sales staff for project inquiries.



FAQ
Everything You Need to Know


Q1: What is Element PU Panel?

A: Element PU Panel is polyurethane insulated sandwich panel, widely used for food cold storage, chiller, freezer and blast rooms.

Q2: What thickness options are available?

A: 70/100mm for chiller room, 150mm for freezer room, 200mm for blasting room.

Q3: What working temperatures can these panels support?

A: Chiller ~0°C for fruits & vegetables; freezer -18~-25°C for meat; blast room -35°C for quick-frozen food.

Q4: What certifications do Element PU Panels have?

A: We have CE, ISO certifications and related test reports. The PU core complies with B1 fire rating.

Q5: What is the PU density and U-value?

A: PU density: 42kg/m³(±2), U-value ≤0.024 W/mK.

Q6: Can you customize the panel size and color?

A: Yes. Length can be customized up to 11.85m. RAL colors and multiple surface textures are optional.



why choose Our cold room roof panels?

Here are the reasons why our cold storage roof panels are the best choice for your project:

✔ High Strength – Reinforced steel frame for heavy-duty applications.
✔ Superior Insulation – Minimal thermal loss with airtight cam-lock joints.
✔ Corrosion-Resistant – PVDF-coated or SS304 options for harsh environments.
✔ Fast Installation – Modular design allows 200+ m²/day assembly speed.
