Polyurethane Foam Sandwich Panels

Polyurethane Foam Sandwich Panels

Polyurethane foam sandwich panels are lightweight, making them easy to handle and install, reducing construction time and labor costs.Despite being lightweight, polyurethane foam sandwich panels offer high strength and structural integrity, enhancing the stability and durability of buildings.These panels are versatile and suitable for various applications, including walls, roofs, floors, and cold storage facilities.
Send Inquiry
Description
Technical Parameters
Polyurethane Foam Sandwich Panels Manufacturer | Element



Element polyurethane foam sandwich panels are insulated composite panels made with a rigid polyurethane (PU) foam core and protective metal facings. They provide effective thermal insulation, moisture resistance and a durable surface for a wide range of building applications.

As a polyurethane sandwich panel manufacturer in China, Element supplies customized panels for cold rooms, freezer rooms, food processing facilities, warehouses and industrial buildings. Panel thickness, metal facing material, surface finish and dimensions can be selected according to project requirements.



With an automatic polyurethane panel production line, Element supports customized manufacturing, technical consultation, quantity calculations and installation guidance for international customers.

Contact Element with your project drawings, dimensions and required operating temperature to receive a suitable panel specification and quotation.



Products Specification

Products Title

Polyurethane foam sandwich panels
Steel Facing Thickness 0.4–0.7 mm

Panel Thickness

Chiller Room:75/100mm

Freezer Room:150mm

Blasting Room:200mm

Working Temperature

Chiller Room:about 0℃

Application:fruits and vegetables

Freezer Room:-18℃

Application:for storage meats

Blasting Room:-35℃

Application:quick-frozen food

Color

any other required on RAL Color

PU Density

42 ± 2 kg/m³

Effective Width

400-1120mm for wall panel,1000mm for roof panel

Length

Up to 11,850 mm, subject to panel type and transport limits
Thermal conductivity

 ≤0.024 W/(m·K)

Fire Rating

PU:CLASS B1

Surface Texture

Flat/Embossed Pattern/V8/Micro Ripple

Contact now





Factory Workshop

Production Process





Polyurethane Foam Sandwich Panels Coated Steel Coiling

Coated Steel Coiling

Metal coils are unrolled and prepared for the required panel surface and dimensions.

Polyurethane Foam Sandwich PanelsElectrostatic Film Laminating

Electrostatic Film Laminating

Protective film is applied to the metal facing when required.

Polyurethane Foam Sandwich Panels Pressing Machinery

Pressing Machinery

Metal sheets are formed to the specified panel profile.

Polyurethane Foam Sandwich Panels Double Track Foam Composite

Double Track Foam Composite

PU foam is formed between the metal facing sheets.

Polyurethane Foam Sandwich Panels Precise Machine Cutting

Precise Machine Cutting

Panels are cut to the required length and checked against the confirmed specifications.

Polyurethane Foam Sandwich Panels Panel Cooling


Panel CoolingCools and stabilizes panels to ensure consistent quality and dimensional accuracy.

Polyurethane Foam Sandwich Panels Package

Package

Finished panels are protected, packed

Polyurethane Foam Sandwich Panels To be Loaded

To be Loaded

and prepared for container loading and overseas delivery.

Project  Cases



Polyurethane Foam Sandwich Panels

Applications of Polyurethane Foam Sandwich Panels

1. Prefabricated Housing
Polyurethane foam sandwich panels are used for walls and roofs in prefabricated buildings. Their lightweight structure and thermal insulation help speed up installation and improve indoor comfort.

2. Pharmaceutical Cleanrooms
PU sandwich panels can be used for cleanroom walls and ceilings when the panel surface, joints and supporting system meet the project's hygiene and cleanliness requirements. Fire performance must be verified against the applicable test standards.

3. Retail and Commercial Buildings
PU sandwich panels provide thermal insulation for selected walls and partitions in retail stores and commercial buildings. Customized colors and surface finishes help meet different design requirements.

4. Refrigerated Truck Bodies
PU insulated sandwich panels are used in refrigerated truck bodies to reduce heat transfer and help maintain the required cargo temperature during transportation. Panel thickness and construction should match the vehicle design and operating conditions.

More Project Please review our solution~



Why Choose Element Polyurethane Foam Sandwich Panels?
.jpg

Direct Factory Manufacturing
Element manufactures insulated sandwich panels in Zhengzhou, China, with an imported Italian PUMA polyurethane production line.

Customized Specifications
Panel thickness, dimensions, metal facings and colors can be selected according to project requirements.

Technical Support
Our team can help with panel layout drawings, quantity calculations and accessory planning before production.

Quality Inspection
Production checks and pre-shipment inspections help verify panel specifications and product condition.

One-Stop Cold Storage Solutions
In addition to PU panels, Element can supply cold room doors, refrigeration equipment and related accessories for complete cold storage projects.

Overseas Project Support
We provide online installation guidance and can discuss on-site technical support according to project needs.

Frequently Asked Questions



1. What are polyurethane foam sandwich panels used for?

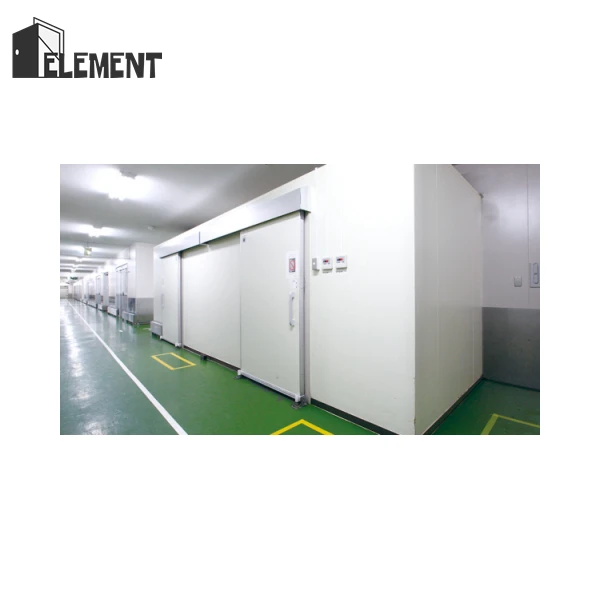

They are commonly used for cold rooms, freezer rooms, food processing facilities, warehouses and insulated industrial buildings.



2. What thicknesses are available?
Panel thicknesses can be customized according to the product type and project requirements. Common options for cold storage include 75 mm, 100 mm, 150 mm and 200 mm.



3. What is the thermal conductivity of PU sandwich panels?
Please refer to the confirmed product specification and test report for the thermal conductivity of the selected panel.



4. Can Element customize panel dimensions and colors?
Yes. Panel length, facing material, surface finish and available RAL colors can be selected according to your requirements.



5. What is the production lead time?
The typical lead time is around 15–20 days after specifications and payment arrangements are confirmed, subject to order quantity and production scheduling.



6. How can I get a quotation?
Send us your project dimensions, required panel thickness, facing material, quantity and destination port. Our team will help calculate the required panels and prepare a quotation.
