How to Design and Configure Glass‑Door Display Cold Rooms for Retail Stores?

Application of Glass‑Door Walk‑In Cold Rooms in Retail Stores

In supermarkets and food retail outlets, refrigerated and frozen goods require both storage capacity and easy access for customers. The traditional solution is to place multiple upright or chest freezers on the sales floor. However, a large number of standalone freezers take up considerable floor space and make restocking and merchandise organization cumbersome.

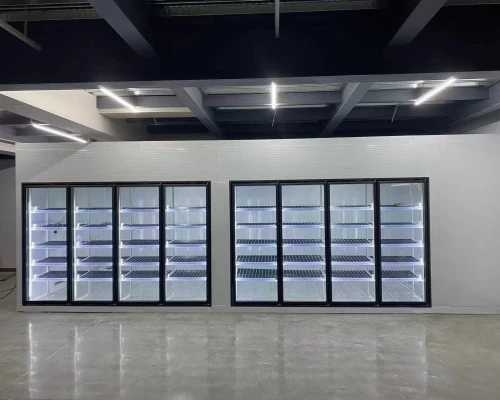

A walk‑in cold room fitted with glass doors features a row of glass doors on its exterior. Customers can pick products directly from the outside, while staff enter the cold room to restock and arrange inventory. Compared with individual freezers, this layout delivers larger integrated storage space. The cold room's length, depth, number of glass doors and internal shelving can all be customized to match actual store conditions.

Contact now

I. Four Basic Parameters to Confirm Before Design

A walk‑in display cold room cannot be sized merely based on floor area. Merchandise, target temperature, site conditions and usage frequency all impact the final solution.

1. Product Type and Target Temperature

Different goods require different storage temperatures.

For stores selling both chilled beverages and frozen food, it is recommended to set separate temperature zones for different product categories instead of using a single temperature for all items.

2. Site Dimensions

Confirm the length, width and clear height of the designated area in advance.

These dimensions determine the cold‑room volume, quantity of glass doors and layout of internal shelving. Clear height must account for evaporator installation and cold‑air circulation, rather than only considering floor space.

3. Daily Restocking Volume and Door‑Opening Frequency

This parameter is often overlooked for retail display cold rooms.

Glass doors are opened repeatedly during business hours, drawing in hot, humid ambient air. Accordingly, cold rooms with identical floor area may require different cooling capacities depending on whether doors are opened dozens or hundreds of times per day.

4. Local Ambient Conditions and Power Supply

For overseas projects, verify the following in advance: ambient temperature, voltage, frequency and phase number.

For high‑temperature regions, select suitable condensers and refrigeration units according to actual site conditions to prevent unstable room temperature under heavy summer operating loads.

II. Cold‑Room Enclosure and Glass Door Configuration

PU Insulation Panels

PU polyurethane insulation panels serve as the main envelope structure for walk‑in cold rooms.

Reference for common selections:

The actual panel thickness shall be determined by target temperature, cold‑room dimensions, local climate and refrigeration load.

Insulation performance is especially critical for retail display cold rooms. Frequent daily opening of glass doors leads to far higher cold‑loss compared with conventional storage‑only cold rooms.

PPGI color‑coated steel sheets or stainless‑steel sheets are available for panel surfaces according to project requirements.

Glass‑Door Display System

Glass doors are the most distinctive feature of this type of cold room and a key consideration during design.

General design sequence: Number of glass doors → Single‑door dimensions → Display bay width → Number of shelf tiers → Overall cold‑room length.

III. Do Not Size the Refrigeration System Merely by Cold‑Room Area

Cooling capacity for display cold rooms shall be calculated based on actual cooling load, instead of simply matching horsepower per square meter.

Key influencing factors:

Glass‑door opening frequency is especially vital for retail sites. Frequent customer door openings draw continuous warm ambient air inside, raising the total heat the refrigeration system must handle.

The proper design sequence is: Calculate cooling load → Confirm required cooling capacity → Select condensing unit → Configure evaporator and control system

Do not select a unit size first and then adapt it to the cold room.

IV. Components of a Complete Display Cold‑Room Project

A complete project consists of far more than just cold‑room panels and glass doors. It is made up of multiple components:



System	Main Components
Cold Room Structure	PU insulated panels, floor insulation, trims, sealing materials
Display	Glass display doors, shelving, interior lighting
Refrigeration	Condensing unit, evaporator/cooler, copper pipes, expansion valve, insulation materials
Control	Temperature controller, electrical control box, temperature sensors
Doors	Glass display doors, personnel access doors, goods access doors
Project Configuration	Voltage, frequency, ambient temperature, refrigerant, etc.

V. Implementation Process for Display Cold‑Room Projects

Requirement confirmation → Define products and target temperature → Confirm cold‑room dimensions and number of glass doors → Plan shelving and restocking method → Calculate refrigeration load → Select PU panels and refrigeration equipment → Proposal confirmation & quotation → Production → Shipment → Installation guidance

Defining these parameters clearly at the early stage helps avoid later revisions.

In particular, the number of glass doors, door‑opening frequency and daily restocking volume shall be confirmed before refrigeration equipment selection. Otherwise, a common issue may occur: sufficient display space is available, yet the cooling capacity cannot keep up with actual demand.
