What is the production process for polyurethane cold storage panels?

Oct 07, 2026

Leave a message

PU Cold Room Panel Manufacturing Process Video



Element New Materials is a professional manufacturer of PU cold room panels and polyurethane sandwich panels in China. To improve production efficiency and product consistency, Element invested RMB 22 million in an Italian PUMA fully automatic polyurethane energy-saving panel production line. With an annual production capacity of more than 2 million square meters, the production line supports large-scale orders and customized insulated panel projects.

Element's polyurethane composite panel production line can manufacture PU sandwich panels, PU edge-sealed rock wool panels, PU edge-sealed glass wool panels and PU cold room panels. The highly mechanized production process helps maintain stable product quality, accurate dimensions and efficient production.



How we started Manufacture Polyurethane Cold Storage Panels
Element uncoiling

No.1



Uncoiling Steel mACHINE

After checking that the color and thickness of the color steel coil or other metal surface material match the order, install it onto the uncoiler.Two 10-ton uncoilers can reduce intermediate scrap generated during coil splicing, thereby saving costs for the customer.

Element film lamination

No.2



film lamination

Applying a protective film to the sheet surface during the roll-forming process effectively safeguards the steel sheet's finish against dents and scratches during production, handling, and loading for shipment.

Roll Forming

No.3



Roll forming

The inner panel is formed using a 16-station roll-forming process, which ensures greater precision in the formation of the interlocking joint and minimizes damage to the surface coating. For the outer panel-such as the roofing sheet-a 30-station process is employed; this gentler cold-forming method yields superior dimensional accuracy and ensures consistent panel quality.

Double-Belt Curing Forming

No.4



Double-Belt Curing & Forming

The main machine exceeds 33 meters in length; since the foaming process determines product quality-and the chemical reaction between components requires a specific duration-the extra-long machine and the intelligent variable-frequency constant-temperature control system extend the effective curing time by 30%. This ensures more thorough curing of the core material and results in more stable panel performance.

Automatic Cutting

No.5



Laser-assisted band saw cutting

Fully imported band saws are used for cutting the panels, ensuring exceptional cutting precision (with errors controlled within 1 mm) and leaving the cut edges free of burrs or rough fringes.

Cooling Stabilization

No.6

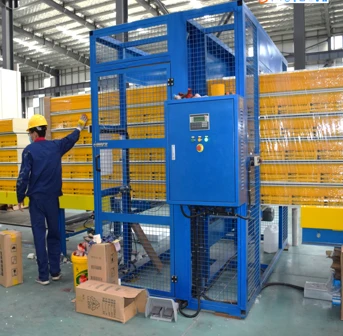

Fully automatic board handling system

36 sets of shifting forks extend the cooling time on the plate, ensuring the core material is fully cured and guaranteeing consistent product performance.

Quality Inspection Packaging

N0.7



Fully automatic strapping system

Six-sided wrapping and packaging: Six-sided packaging ensures the boards are protected from impacts during transport that could damage the surface or affect their usability.





Foaming is the most critical step determining the thermal insulation, strength, and dimensional stability of cold storage panels; while the steel sheets serve merely as the facing layers, 90% of the panel's performance depends on the foaming process. Essentially, foaming involves the high-speed mixing of "black component" (isocyanate) and "white component" (polyols and additives), triggering polymerization and expansion to form a continuous, closed-cell foam core between the upper and lower steel sheets.






Element maintains a polyurethane closed-cell content of over 97%



7-Component Foaming Machine ECO


Foaming technology is the core of polyurethane cold storage panel production. The insulation, strength and dimensional stability of panels mainly rely on foaming quality. The process is based on polymerization and expansion after high-pressure impact mixing of isocyanate (black material) and polyol-based white material, forming continuous closed-cell foam core between upper and lower steel sheets.

7-Component Foaming Machine OMS


Equipped with a seven-component foaming system composed of material tanks, dispensing boom and temperature control unit. Its dual-nozzle dispensing boom delivers uniform material distribution. No shutdown is required for on-line nozzle replacement, with waste kept below 1 meter. Raw materials are temperature-controlled all the way from drums to mixing head for better mixing. The machine supports high production speed and real-time parameter adjustment.

For buyers, choosing a PU cold room panel manufacturer should not be based only on price. Production equipment, PU density, thermal conductivity, panel thickness, metal sheet quality, foam adhesion, dimensional accuracy, quality inspection and production capacity should all be considered.

With advanced production equipment, large annual capacity and a controlled manufacturing process, Element New Materials provides PU cold room panels for customers and projects worldwide.
